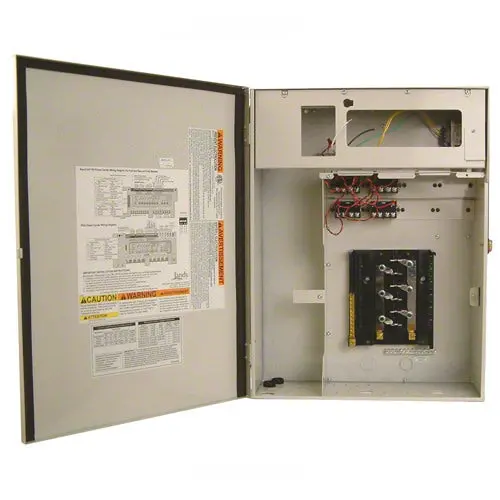

Jandy 6614-LD Sub-Panel Power Center

Description

Jandy Sub Panel Power Center 6614-LD
Aqualink RS Sub Panel Power Center Features:

• Operates up to 8 circuits.
• Four 3 HP Relays. (can add up to eight)
• Works with all AquaLink RS and PDA control models.
• Powder-coated, galvanized steel construction.
• Simple, top-down installation, 3 HP Relays.
• Add up to three auxiliary power centers within 500 feet of the primary power center.

Technical Specifications:

• An additional 4″ added to the low voltage raceway.
• 120/24 VAC Transformer (supply input).
• Multiple knockouts for 1/2″ to 1 1/2″ conduit.
• 12 breaker mount plate slots for up to 125 amp breakers.
• GFCI side knockout.
• Service and time-out for all circuits (AquaLink RS and PDA).
• Optional surge protection for all components.

Dimensions:

• 17″ Wide X 22″ Height X 6″ Depth
