Jandy 6613 Standard Power Center – Reliable Electrical Control Hub for Pools and Spas

Description

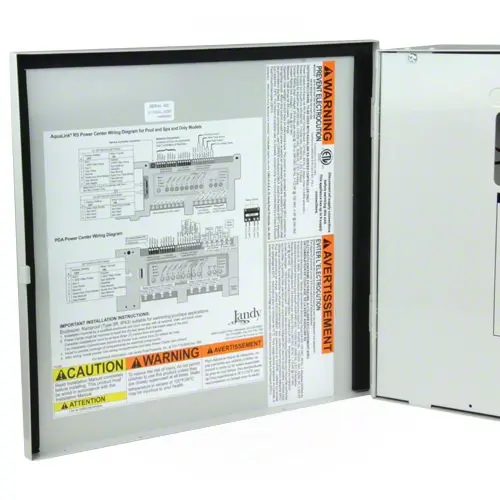

Jandy Standard Power Center 6613
Aqualink RS Standard Power Center Features:
Operates up to 8 circuits.
Four 3 HP Relays. (can add up to eight)
Works with all AquaLink RS and PDA control models.
Powder-coated, galvanized steel construction.
Simple, top-down installation, 3 HP Relays.
Add up to three auxiliary power centers within 500 feet of the primary power center.
Technical Specifications:
An additional 4″ added to the low voltage raceway.
120/24 VAC Transformer (supply input).
Multiple knockouts for 1/2″ to 1 1/2″ conduit.
Service and time-out for all circuits (AquaLink RS and PDA).
Optional surge protection for all components.
Dimensions:
14″ Wide X 14″ Height X 4″ Depth
Jandy 6613
Zodiac 6613
