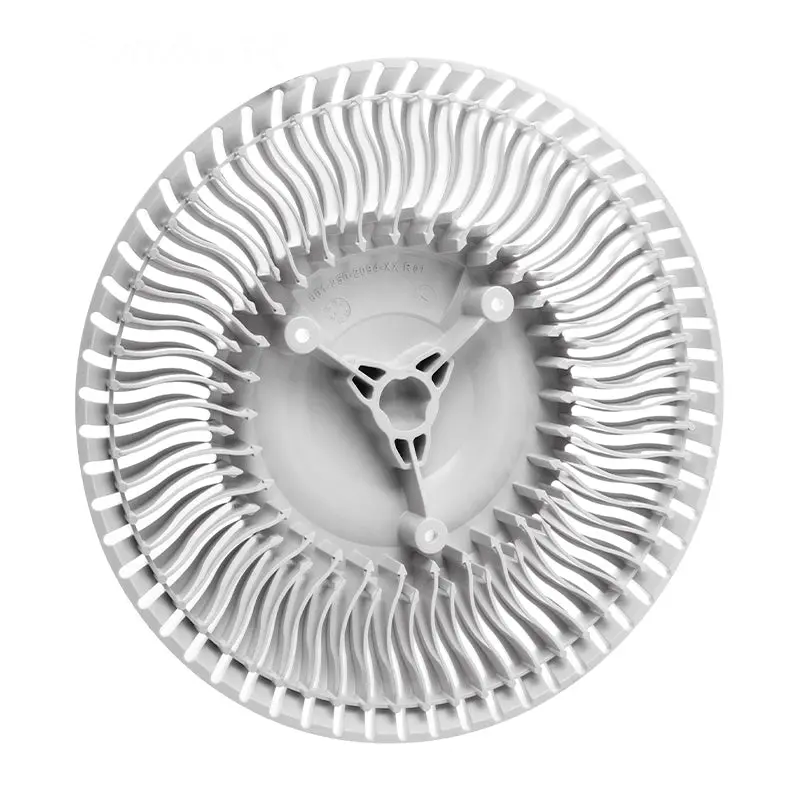

Paramount SDX2 Safety Drain Cover 005252209701
SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. SDX2 Drain Covers boast a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible with most residential pumps up to 3 horsepower. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.
Features:
- SDX2 Cover with Screws for Concrete Pools
- NO SUMP REQUIRED = TIME SAVED. No need to field fabricate a sump to meet the 1.5 times the pipe diameter requirement.
- Low velocity 1.396 feet per second at the maximum (188 gpm) flow rating.
- Patented ribbed design achieves very high flow via 60 independent flow partitions.
- Approved as a bulkhead fitting as the safety is in the cover and back plate.
- Anti-vortex center shield blocks contact with direction suction.
- SDX2 comes with a plaster ring for new applications.
- Great for use with water features.
- VGB 2008 Compliant
- Life in years = 5 years installed
Color:
- White
Paramount 005252209701
