Description

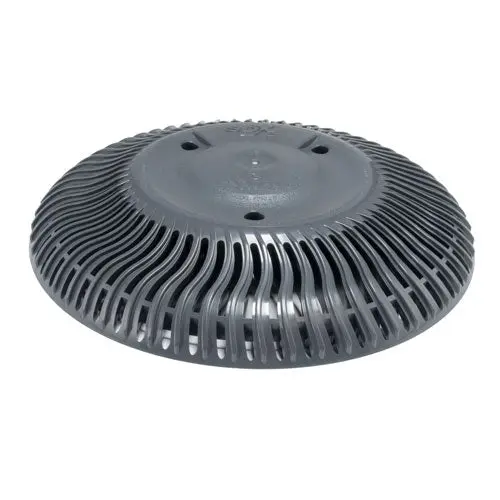

Paramount SDX2 10″ Round High Flow Suction Outlets – 2 Pack
SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.
The SDX2 Sumpless suction/main drain outlets can be used on the pool floors or walls and are designed to installed during new construction or remodels when a new plaster ring is being installed (such as when a new interior finish is being applied).
SDX2 Suction Outlets Feature:
- 10″ Round main drains for vinyl pools
- Includes 2 complete main drain suction outlets
- Anti-vortex shield blocks contact from direct suction
- Ribbed design acts as 60 “mini” drains
- Secondary support plate protects the sump and fittings
- Made from UV-resistant engineered polymer
- No sump required
- Stainless steel security screws
- SDX retro can be installed as a single cover with an SVRS installed on the suction line
- ASME A112.19.8 2007 Listed
- Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act
- USPC (uniform swimming pool, spa and hot tub code) compliant
- Replace every five years from the date of purchase
Dual – Sumpless Specifications:
- Floor -188 gallons per minute
- Wall -154 gallons per minute
