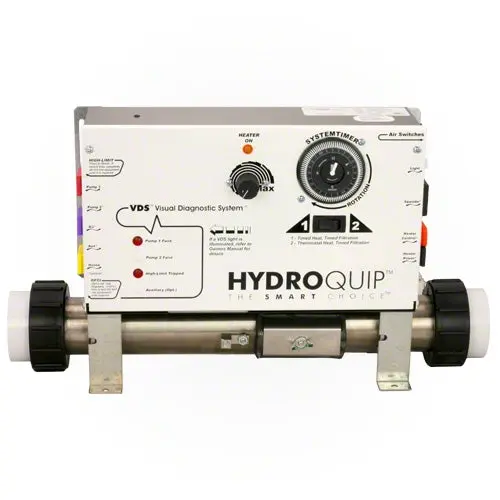

Hydroquip Slide Series CS6009-US1 Air Control Valve

Description

HydroQuip Slide Series Air Control System CS6009-US1
The HydroQuip CS6000 Slide series air control systems are the most versatile Electro-Mechanical control units with its one of a kind vertically adjustable heater. Mount the heater where you need it – anywhere along the back of the control box, underneath, or remote!
The HydroQuip CS6009-US1 Control System Can Operate:

• 1- 5.5 KW Stainless “SLIDE” Heater Assembly
• 1- One or Two Speed Pump Either 120 Volt or 240 Volt
• 1- Blower
• (A Total of 1 Two Speed pump and a Blower)
• 1- Ozonator (120 Volt or 240 Volt)
• 1- Spa Light
• (All Circuits are convertible to 120 or 240VAC)

The HydroQuip CS6009-US1 Control System Features:

• 120 Volt / 240 Volt Convertible Power
• 1.375 KW at 110 Volts / 5.5 KW at 240 Volts “SLIDE” Heater
• “VDS” Visual Diagnostics
• Lighted Smart Cords.
• Full Range Thermostat
• Ozone Circuit (120 Volt / 240 Volt)
• Light Circuit (12 Volt)
• Heater “ON” Indicator Light
• “Paint-Lock” Rust Proof Enclosure
• Detailed Owners Manual
• Detailed Wiring Diagram
• 1 Year Manufacturers Warranty Standard

The HydroQuip Water Pro CS6009-US1 System Includes:

• CS6009-US1 Control System
• 5.5 KW Stainless “SLIDE” Heater Assembly
• Pump, Blower and Ozone Cords
• Air Transmitters
• Air Tubing
• Tailpieces with Gaskets

Dimensions:

• 15″ Wide X 11″ High X 5″ Depth

Optional Top Side Control Panels:

• 3 Button Analog 34-0039A-S
• 3 Button Digital 34-0039D-S
